High-Temperature FlameShield Silicon Tape
Easy & Clean to Use
FlameShield Pure Silicon Tape incorporates a blue marking stripe along its center, making it easy to over-wrap at 50% when taping long lengths. The triangular profile of the tape (thickest in the centre and reducing thickness towards each edge) ensures a smooth finish to the installation with minimum ridging. Easy to remove with a sharp blade while curing or when completely cured and does not leave a gummy or sticky residue the way pressure sensitive adhesive tapes such as standard vinyl electrical tapes or duct tapes do.
FlameShield Pure Silicon Tape incorporates a blue marking stripe along its center, making it easy to over-wrap at 50% when taping long lengths. The triangular profile of the tape (thickest in the centre and reducing thickness towards each edge) ensures a smooth finish to the installation with minimum ridging. Easy to remove with a sharp blade while curing or when completely cured and does not leave a gummy or sticky residue the way pressure sensitive adhesive tapes such as standard vinyl electrical tapes or duct tapes do.
Available
in a 1" / 25mm
and
1.5" / 37mm width.
Each roll contains
432" / 36' / 10.9m of tape.
in a 1" / 25mm
and
1.5" / 37mm width.
Each roll contains
432" / 36' / 10.9m of tape.
How to Install FlameShield Pure Silicon Tape

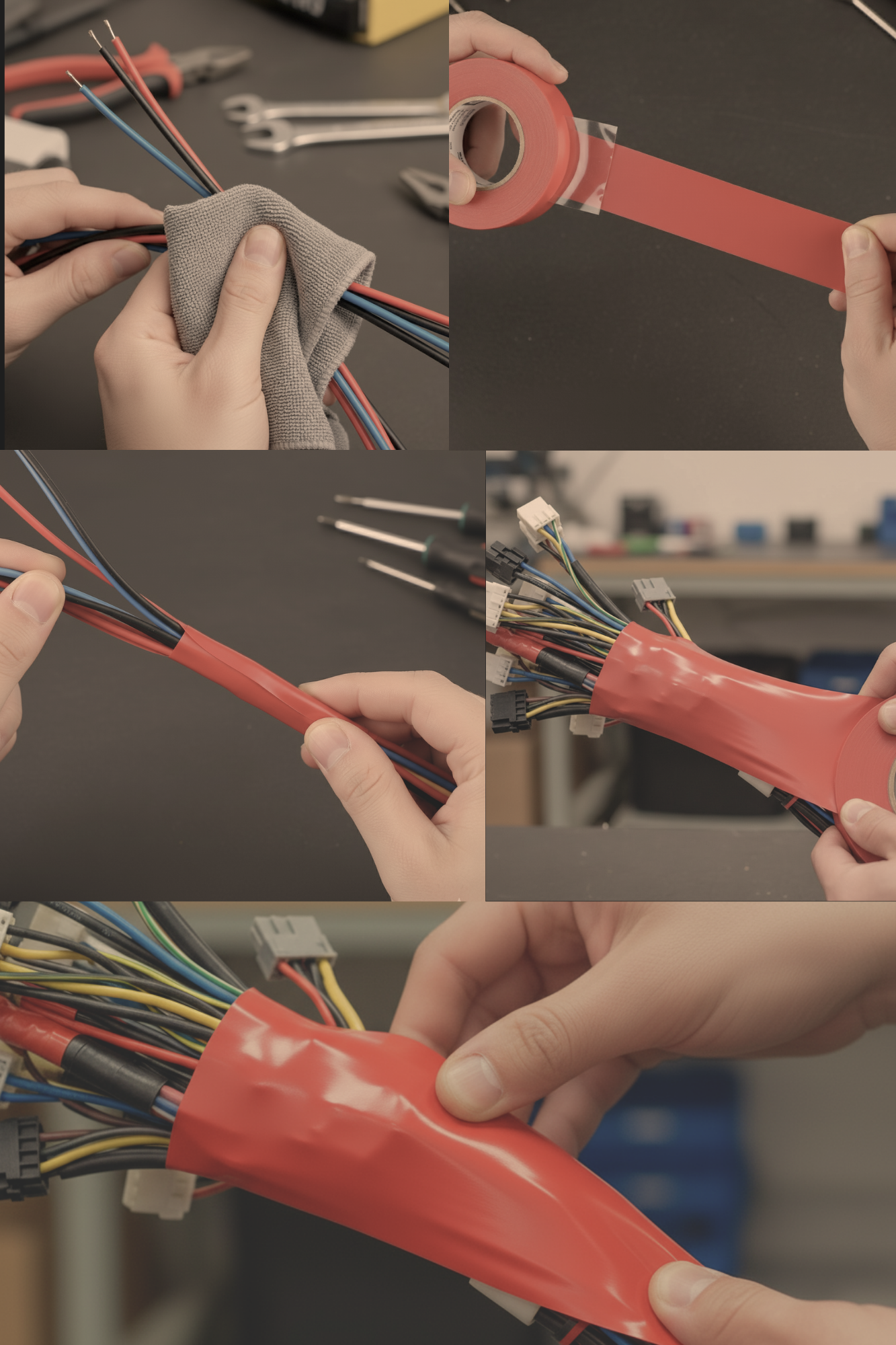

Lift off the end of the silicon tape from its backing film and then hold the free end onto what the tape is being installed on. With your other hand which is holding the remainder of the tape roll, moderately pull or stretch the tape while over-lapping the wrap. The stretching action activates the special formulation of silicone rubber with the result of the tape self-binding / self-fusing to itself.
Has Many Practical Uses
FlameShield pure silicon tape makes for easy hose and cable bundling, replacing tie-wraps. Excellent for fixing leaks in piping and hoses. Makes a good emergency fan belt. Provides excellent weather protection for outdoor electrical and electronic connections. Great as a first-aid tape to hold splints & bandages in place.
Lift off the end of the silicon tape from its backing film and then hold the free end onto what the tape is being installed on. With your other hand which is holding the remainder of the tape roll, moderately pull or stretch the tape while over-lapping the wrap. The stretching action activates the special formulation of silicone rubber with the result of the tape self-binding / self-fusing to itself.
Has Many Practical Uses
FlameShield pure silicon tape makes for easy hose and cable bundling, replacing tie-wraps. Excellent for fixing leaks in piping and hoses. Makes a good emergency fan belt. Provides excellent weather protection for outdoor electrical and electronic connections. Great as a first-aid tape to hold splints & bandages in place.
FlameShield
Pure Silicon Tape is
Self-Fusing / Self-Bonding
and non-flammable.
Pure Silicon Tape is
Self-Fusing / Self-Bonding
and non-flammable.
Compare Our Tape's
Specifications With
Other Makes...!
Specifications With
Other Makes...!
• Elongation up to 700%.
(other makes are 300%)
• Tear Strength greater
than 140 psi.
(other makes are 85 psi)
• Dielectric of 575V/mil.
(>8000V per wrap!)
(other makes are
400V/mil)
• Soft and easily conforms
to odd shapes.
• 1" / 25mm wide tape
is .020" / .51mm thick.
(part number ABST-16)
• 1.5" / 37mm wide tape
is .060" / 1.5mm thick.
(part number ABST-24)
• Rolls contain 36 feet or
10.9 metres of tape.
(other makes as little
as 5 feet / 1.5 meters)
• Resistant to fuels.
(other makes are 300%)
• Tear Strength greater
than 140 psi.
(other makes are 85 psi)
• Dielectric of 575V/mil.
(>8000V per wrap!)
(other makes are
400V/mil)
• Soft and easily conforms
to odd shapes.
• 1" / 25mm wide tape
is .020" / .51mm thick.
(part number ABST-16)
• 1.5" / 37mm wide tape
is .060" / 1.5mm thick.
(part number ABST-24)
• Rolls contain 36 feet or
10.9 metres of tape.
(other makes as little
as 5 feet / 1.5 meters)
• Resistant to fuels.
Silicon Tape Fusing / Bonding Time
Silicon tape when over-wrapped under tension adheres to itself and fuses, forming a solid protective shield in 24 hours at room temperature or in just 4 hours at +356ºF / +180ºC. The tape starts to self-fuse / self-bond as it is used, and can be re-seated if necessary within a few seconds of over-wrapping. After a few minutes it is usually necessary to remove the tape with a knife.
Silicon tape when over-wrapped under tension adheres to itself and fuses, forming a solid protective shield in 24 hours at room temperature or in just 4 hours at +356ºF / +180ºC. The tape starts to self-fuse / self-bond as it is used, and can be re-seated if necessary within a few seconds of over-wrapping. After a few minutes it is usually necessary to remove the tape with a knife.
Specifications & Standards
FlameShield Pure Silicon Tape Meets many or all of the specifications of the following standards:
MIL-I-46852, MIL A-A-59163, ASTM D412, ASTM D 119,
ASTM D150, ASTM D624, ASTM D2148, ASTM D2240.
FlameShield Pure Silicon Tape may also be certified to the following specifications upon request (fees apply):
MIL-I-46852C Type I & II, A-A-59163 Type I & II, MIL-I-22444C,
Boeing DMS2186 Type I & II, Lockheed Martin MMS J517 & 5-00857,
General Electric A50A493 / A50E112 / P5384, Rohr RMS315, FAR 25.853, UL/CSA.
FlameShield Pure Silicon Tape Meets many or all of the specifications of the following standards:
MIL-I-46852, MIL A-A-59163, ASTM D412, ASTM D 119,
ASTM D150, ASTM D624, ASTM D2148, ASTM D2240.
FlameShield Pure Silicon Tape may also be certified to the following specifications upon request (fees apply):
MIL-I-46852C Type I & II, A-A-59163 Type I & II, MIL-I-22444C,
Boeing DMS2186 Type I & II, Lockheed Martin MMS J517 & 5-00857,
General Electric A50A493 / A50E112 / P5384, Rohr RMS315, FAR 25.853, UL/CSA.
Contact us for volume
discounts when
purchasing 24 rolls
or more
discounts when
purchasing 24 rolls
or more
The proprietary silicone formulation provides optimal thermal dispersion & contains
no flammable dyes.
no flammable dyes.
FlameShield Pure Silicon Tape

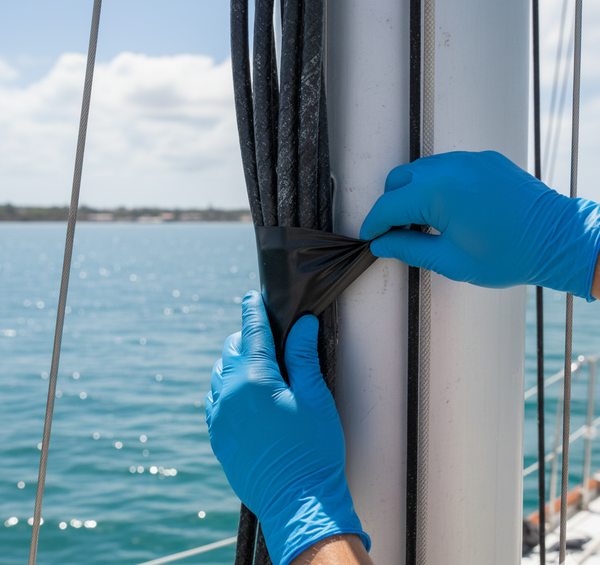

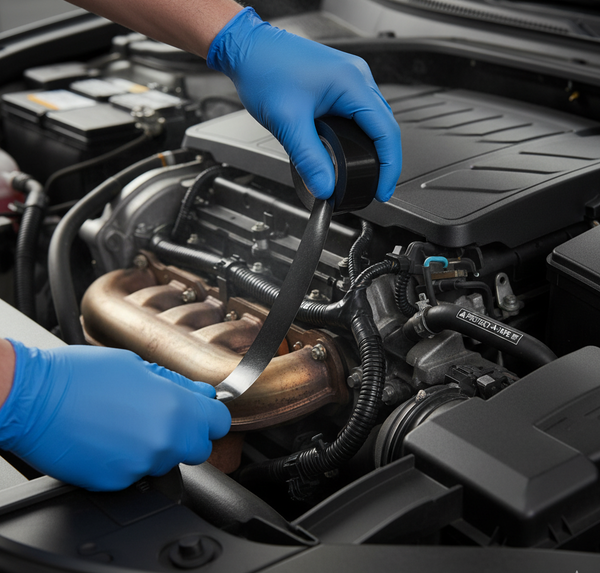

for Aviation, Automotive, Marine,
Industrial & Electrical Use.
Non-flammable & self-extinguishing.
for Aviation, Automotive, Marine,
Industrial & Electrical Use.
Non-flammable & self-extinguishing.
We Accept:
1" / 25mm wide
tape is $19.95 per roll.
Part # ABST-16
(List Price $26.00)
tape is $19.95 per roll.
Part # ABST-16
(List Price $26.00)
1.5" / 38mm wide
tape is $36.95 per roll.
Part # ABST-24
(List Price $53.00)
tape is $36.95 per roll.
Part # ABST-24
(List Price $53.00)
Silicon Tape or Silicone Tape???
You've reached this website probabaly as a result of typing "silicon tape" in a search engine. Silicon is an element in the periodic table, while Silicone is a man-made formulation of synthetic rubber.
Don't worry - its a very common error!!!
In order to give you the information you're looking for, we've replaced the word Silicone on this site with the word Silicon for the benefit of your search so you would at least find some information about what you were looking for.
You've reached this website probabaly as a result of typing "silicon tape" in a search engine. Silicon is an element in the periodic table, while Silicone is a man-made formulation of synthetic rubber.
Don't worry - its a very common error!!!
In order to give you the information you're looking for, we've replaced the word Silicone on this site with the word Silicon for the benefit of your search so you would at least find some information about what you were looking for.
Silicon Tape General Information

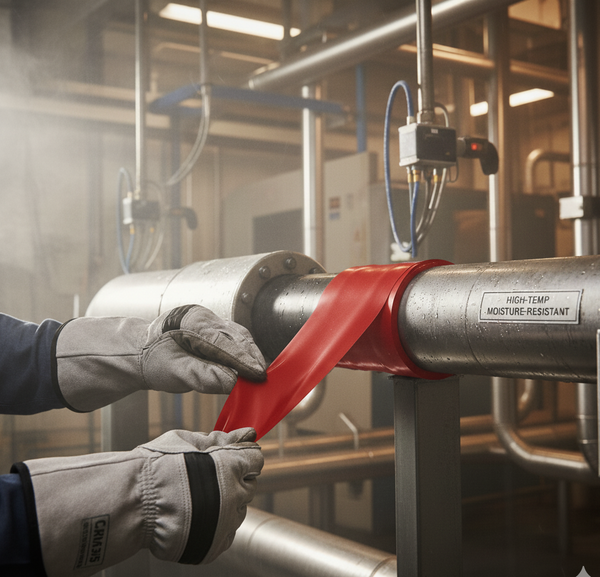

FlameShield Pure Silicon Tape is a self-extinguishing non-flammable tape without an adhesive. Forms an excellent seal that is weather / water / air-tight when wrapped around electrical connections and connectors, cable and wiring splices, hydraulic hose protection sleeves, duct joints and other electro-mechanical devices. The special formulation of this silicon tape self-fuses (amalgamating) when stretched and over-wrapped. Completely flexible at cold temperatures and can be used to +500ºF / +260ºC continuous exposure. Does not support combustion and resists heat, flame, welding splatter, molten metals, solder drips, slag, sparks, Ozone, UV light and contamination. Can be wrapped over oily or wet surfaces and is an excellent emergency repair tape for hoses and pipes. Used extensively in aviation maintenance, repair and overhaul operations.
FlameShield Pure Silicon Tape is a self-extinguishing non-flammable tape without an adhesive. Forms an excellent seal that is weather / water / air-tight when wrapped around electrical connections and connectors, cable and wiring splices, hydraulic hose protection sleeves, duct joints and other electro-mechanical devices. The special formulation of this silicon tape self-fuses (amalgamating) when stretched and over-wrapped. Completely flexible at cold temperatures and can be used to +500ºF / +260ºC continuous exposure. Does not support combustion and resists heat, flame, welding splatter, molten metals, solder drips, slag, sparks, Ozone, UV light and contamination. Can be wrapped over oily or wet surfaces and is an excellent emergency repair tape for hoses and pipes. Used extensively in aviation maintenance, repair and overhaul operations.
